Smart access control solutions for every possible location and need

m331
M331
A Multi-Function cloud access control solution that combines the security and convenience.
m331
TC1000
The most powerful cloud access control solution in the smallest package.
m331
Virtual Attendant
A Plug and Play system. Performing all access control functions with highest efficiency.
Tempered glass with metal casing ensures a lasting new look
One reader for every access control need --
Smartphone one-touch unlock, Key cards, QR codes, Remote Open with photo records for all unlocking events
m331

Key Features

Keypad access with personal PIN and temporary guest codes
Networked directly to the cloud without going thru a local panel
Supporting high security non-copyable key cards and fobs
Tempered glass and metal casing design with removal warnings
QR codes for temporary access can be limited for valid entry timeframe or number of usage
Photo records of all successful and unsuccessful unlocking events

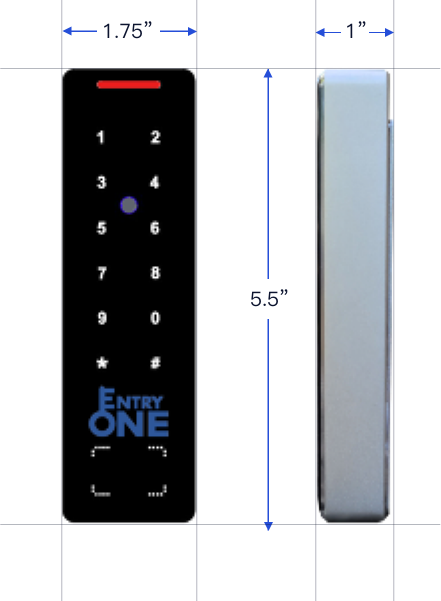

The reader is designed to be installed in conjunction with a controller. With its standard Wiegand 34 output it can be integrated with most existing access control systems. It supports one-tap smartphone access, high security fobs, personal security codes, temporary codes and QR codes. It also features the same glass and metal design as that of M331.
r331

Key Features

Keypad access with personal PIN and temporary guest codes
Networked directly to the cloud without going thru a local panel
Supporting high security non-copyable key cards and fobs
Tempered glass and metal casing design with removal warnings
QR codes for temporary access can be limited for valid entry timeframe or number of usage
Photo records of all successful and unsuccessful unlockingevents
The hidden controller is small enough to fit inside a two-gang electric box, yet powerful enough to store and authentic one hundred thousand credentials for an enterprise or a community. It is connected to the IoT platform via 4G LTE, Ethernet or WiFi. Its small size and instant network connection make any access control implementation a secure and easy process.
tc1000

Key Features

High security IoT connection with SSL certificate
Reliable network directly to the cloud through $GLTE, Ethernet or WiFi
Tempered glass and metal casing design with removal warnings
Efficient and affordable implementation
Photo records of all successful and unsuccessful unlockingevents
Convenient in-vehicle operations for vehicle entry gates with iWatch and voice activation
QR codes for temporary access can be limited for valid entry timeframe or number of usage

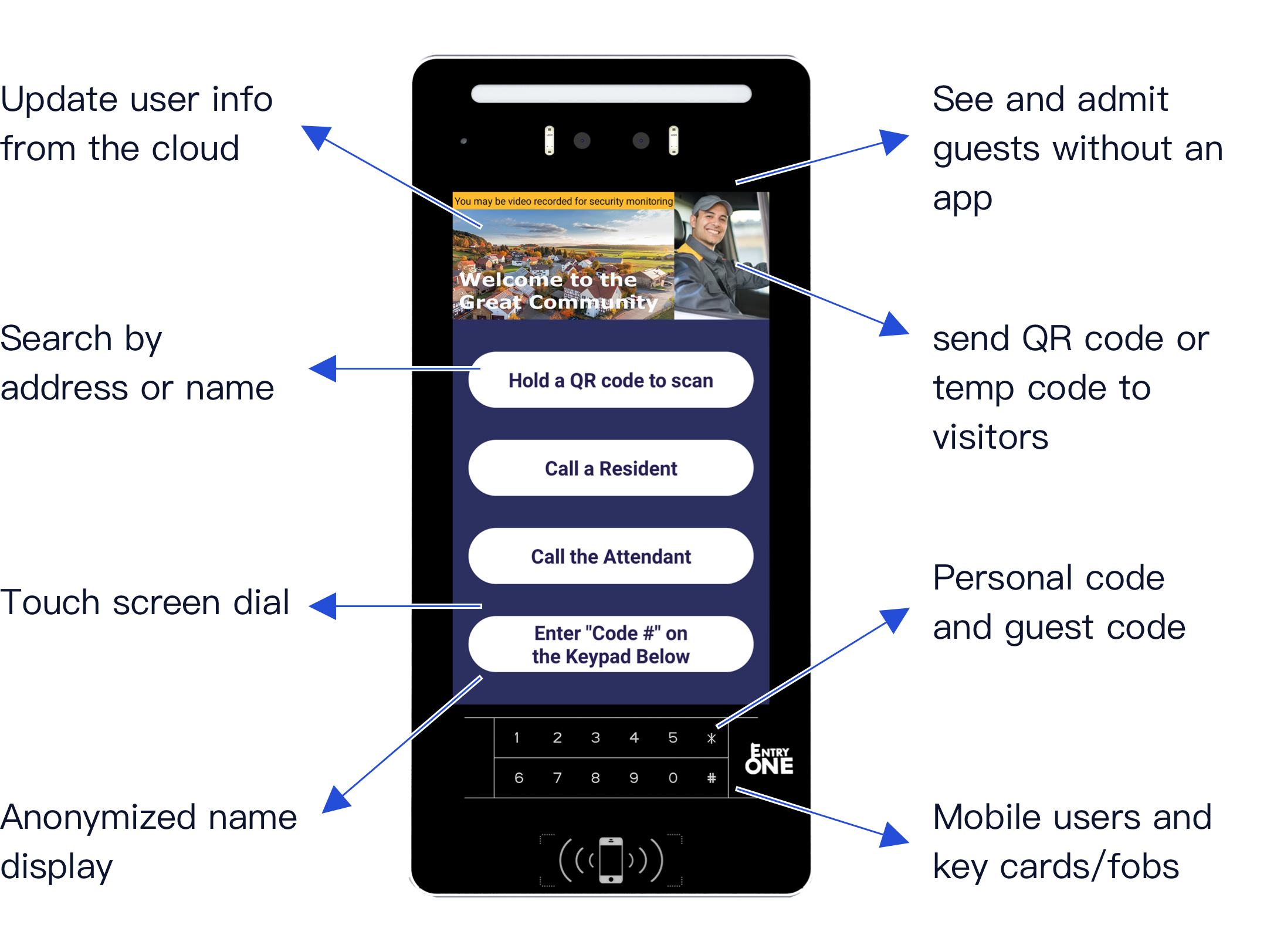

The integrated kiosk station performs all functions a gate attendant or a building front desk would do for a guest or a resident. It seamlessly integrates with all other access control points such as garage access, doors and elevators in the building, and all other facilities throughout the community. Its 4G LTE connection to the cloud means that no network is required for the efficient installation at the community entrances and in front of buildings.
va

Key Features

Up to 100,000 users are supported in the system instead of the typical 3,000 found in the market.
No downloading of an app is necessary for receiving calls, notices or admitting a guest.
You can deploy unlimited Virtual Attendants that are synced automatically in the system. VA will also sync with other Bluetoothkey devices that control access to facilities at the same building or community.
No wiring or trenching is needed for Virtual Attendant. It uses cellular network for voice and data and can be powered by a dedicated solar kit (sold separately).
App users can send time restricted pass to their guests by QR code, six digital code or a weblink.

The integrated kiosk station performs all functions a gate attendant or a building front desk would do for a guest or a resident. It seamlessly integrates with all other access control points such as garage access, doors and elevators in the building, and all other facilities throughout the community. Its 4G LTE connection to the cloud means that no network is required for the efficient installation at the community entrances and in front of buildings.

Product Specifications

Power: 8-15V DC; supporting solar, POE, 24V DC, 16V AC or any low voltage power source greater than 9V with optional accessories.

Working current: 85mA at 12V DC.

Contactless reader mode: 13.56MHz Encrypted MiFare.

Bluetooth mode: unlock function up to 100 feet, with 128bit encryption.

PIN access mode: user selectable 4 to 8 PIN programmable at the web portal.

Temp code mode: visitor QR codes and six-digit temp codes.

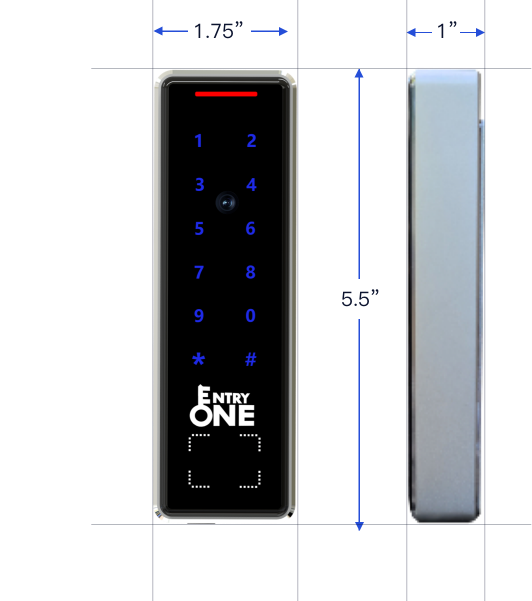

Dimension: 5.5”L,1.75”W, 1”D, designed to fit most door frames and gate posts.

Environment: IP67 weatherproof.

Operating Temperature: -20F-140F.

Materials: tempered glass with touch screen numbers and aluminum casing.

Product Specifications

Power: 8-15V DC; supporting solar, POE, 24V DC, 16V AC or any low voltage power source greater than 9V with optional accessories.

Working current: 85mA at 12V DC.

Contactless reader mode: 13.56MHz Encrypted MiFare.

Bluetooth mode: unlock function up to 100 feet, with 128bit encryption.

PIN access mode: user selectable 4 to 8 PIN programmable at the web portal.

Temp code mode: visitor QR codes and six-digit temp codes.

Dimension: 5.5”L,1.75”W, 1”D, designed to fit most door frames and gate posts.

Environment: IP67 weatherproof.

Operating Temperature: -20F-140F.

Materials: tempered glass with touch screen numbers and aluminum casing.

Product Specifications

Power: 8-15V DC; supporting solar, POE, 24V DC, 16V AC or any low voltage power source greater than 9V with optional accessories.

Working current: 0.15A average at 12V DC.

Reader input: Wiegand 34 or RS485*.

Bluetooth mode: unlock function up to 100 feet, with 128bit encryption.

Personal security PIN: user selectable 4-8 digit codes, up to 100,000 per community.

Temp code mode: visitor QR codes and six-digit temp codes.

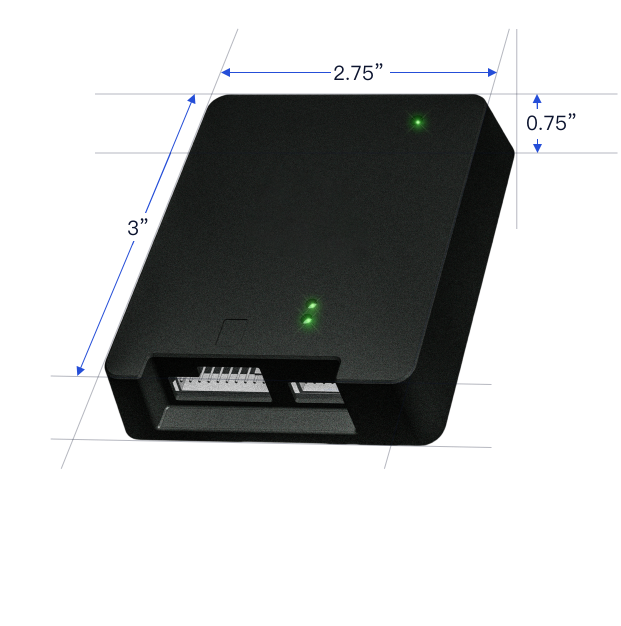

Dimension: 3”L,2.75”W, 0.75”D, designed to fit inside a standard electrical two gang box with a power supply.

Operating Temperature: -20F-140F.

Network to the cloud: 4G LTE, Ethernet or WiFi.

Door alarm: real time alert for unauthorized access with door magnet devices.

*Extra security inputs: Request to Exit, motion sensor, smoke detector input.

*optional features.

Product Specifications

Customizable user capacity for up to 100,000 users.

Ethernet or cellular connections.

Bluetooth unlock of up to 100 feet, up to 100,000 mobile users.

Up to 100,000 user personal security codes.

The user selectable 4 to 8 digit codes are programmed at the web portal.

Support for up to 300,000 visitor QR codes and six digit temp codes.

Mobile app one tap unlock for iOS and Android and iWatch users.

Key cards and fobs credentialed remotely from management portal.

Vehicle transponder input.

Optional solar module and maintenance free battery system.

Simple management portal interface and minimal training needed.

Digital audit trails available without limit.
